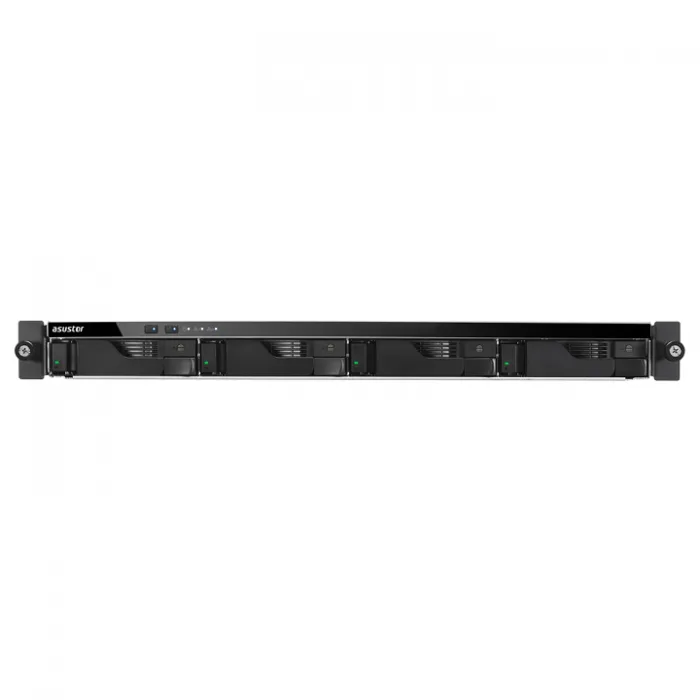

ASUSTOR Asustor AS6504RD
CPU
CPU Model Intel ATOM C3538
CPU Architecture         x64 64-bit
CPU Frequency Quad-Core 2.1GHz
Memory
Memory 8GB SO-DIMM DDR4
Memory Module Pre-installed 8GB (1x 8GB)
Total Memory Slots 4
Memory Expandable up to 128GB (4x 32GB)
Support mixed capacity
Flash Memory 8GB eMMC
Storage
Drive Bays 4
Compatible Drive Type 3.5″ SATA HDD
2.5″ SATA HDD
2.5″ SATA SSD
Maximum Drive Bays with Expansion Unit 20
External Ports
Expansion 4x USB 3.2 Gen 1
Network 2x Gigabit Ethernet (1G/100M)
2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
PCIe Expansion Slots         PCIe 3.0 x8 slot (black, x4 link)
Multimedia Output N/A
Others
System Fan 2x 40mm
Power Supply Unit / Adapter AS6504RS: 250W x1
AS6504RD: 250W x2
AS6504RS x1 / AS6504RD x2
Input Power Voltage 100V to 240V AC
Certification         FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS
Operation
Power Consumption AS6504RS: 47.7W (Operation) 28.4W
(Disk Hibernation);
AS6504RD: 65W (Operation) 42.4W (Disk Hibernation);
Operation Temperature 0C-40C (32F-104F)
Storage Temperature -20C-70C (-4F-158F)
Humidity 5% to 95% RH
Size and Weight
Size         44(H) x 439(W) x 515(D) mm
Weight AS6504RS: 7.85kg / 17.27 lbs;
AS6504RD: 9.3 kg / 20.46 lbs
