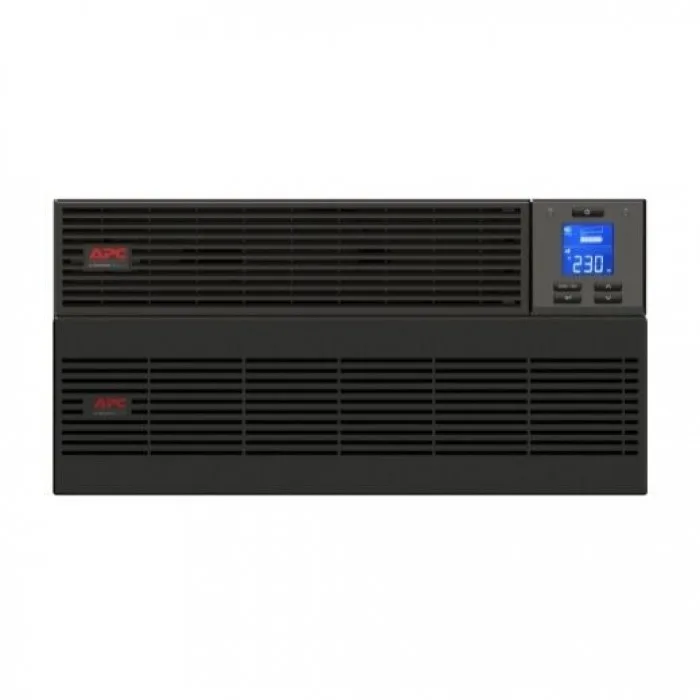

APC APC SRV6KRIL
Technical Specifications
Output
Max Configurable Power (Watts)
6.0kWatts / 6.0kVA
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load
94.0 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
220 V, 240 V
Load Crest Factor
3 : 1
Topology
Double conversion online
Waveform type
Sine wave
Bypass
Internal bypass (automatic and manual)
Input
Input frequency
40 – 70 Hz
Input voltage range for main operations
110 – 300 Adjustable (half load), 176 – 300V
Efficiency at Full Load
94.0 %
Other Input Voltages
220 V, 240 V
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
3hour(s)
Nominal Battery Voltage
240 V
Extended Run Options
Efficiency
Communications & Management
Interface Port(s)
DB-9 RS-232, Intelligent Smart Slot, USB
Control panel
Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)
Yes
Available SmartSlotâ„¢ Interface Quantity
1
Surge Protection and Filtering
Surge energy rating
600Joules
Physical
Maximum Height
220MM, 21.95CM
Maximum Width
438MM, 43.8CM
Maximum Depth
615MM, 61.5CM
Net Weight
78.0KG
Shipping weight
88.0KG
Shipping Height
490MM, 49.0CM
Shipping Width
600MM, 60.0CM
Shipping Depth
870MM, 87.0CM
Color
Black
Environmental
Operating Temperature
0 – 40 °C
Operating Relative Humidity
0 – 95 (Non-condensing) %
Operating Elevation
0 – 3000meters
Storage Temperature
-15 – 60 °C
Storage Relative Humidity
0 – 95 (Non-condensing) %
Storage Elevation
0 – 15000meters
Audible noise at 1 meter from surface of unit
55.0dBA
Protection Class
IP20
Conformance
Approvals
CE, IEC 62040-1-1, IEC 62040-1-2
Standard warranty
2 years repair or replace
