SRT192BP?Features

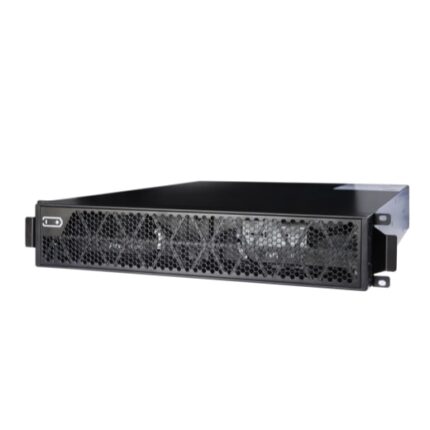

APC Smart-UPS SRT Battery Pack (5kVA & 6kVA) 192V, 1920VAh, rackmount with kit
Extended-run battery systems provide flexible runtime to critical Smart-UPS applications.
Includes:?Documentation CD,?Installation guide,?Warranty card
- Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Smart-UPS Battery Systems?Features & Benefits
Availability
Multiple battery pack configuration
Connect up to 10 battery packs for extended runtime applications.
Advanced battery management included
Embedded monitoring at the cell, module, and cabinet level provides a clear picture of battery runtime and health, with the added benefits of predictable, consistent runtime performance, and stable cell health.
Technical Specifications
Output
Battery Output Voltage
192 V
Batteries & Runtime
Battery type
Lead-acid battery
Battery mounting
Stand alone battery stack
Expected Battery Life (years)
3 – 5
RBC Quantity
2
Physical
Maximum Height
432MM, 43.2CM
Maximum Width
130MM, 13.0CM
Maximum Depth
683MM, 68.27CM
Net Weight
91.0KG
Shipping weight
101.5KG
Shipping Height
420MM, 42.0CM
Shipping Width
600MM, 60.0CM
Shipping Depth
1000MM, 100.0CM
Color
Black
Units per Pallet
1.0
Environmental
Operating Temperature
0 – 40 ?C
Operating Relative Humidity
0 – 95 (Non-condensing) %
Operating Elevation
0 – 3048meters
Storage Temperature
-15 – 45 ?C
Storage Relative Humidity
0 – 95 (Non-condensing) %
Storage Elevation
0 – 4572meters
Conformance
Standard warranty
2 years repair or replace
Sustainable Offer Status
RoHS
Compliant
Proposition 65 Warning
Available in Documentation tab
