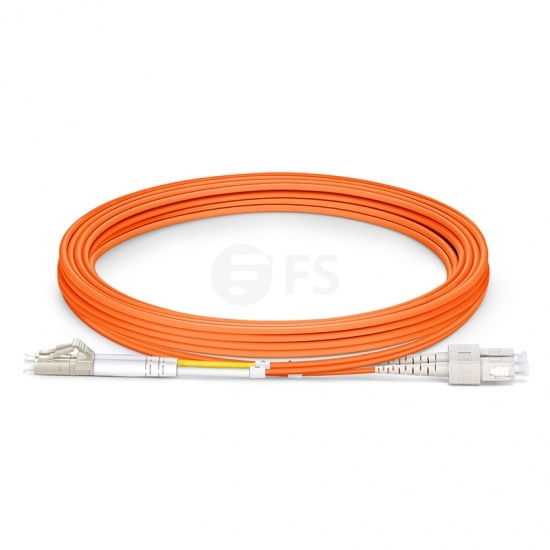

High Quality and Cost-effective 50/125?m OM2 Multimode Fiber Optic Cable
The 50/125?m OM2 multimode fiber optic cable meets RoHS compliant, and is optically tested for insertion loss to ensure high quality. It is very cost-effective for network cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
Description
Connector Type
LC UPC to SC UPC
Fiber Grade
G.651
Fiber Count
Duplex
Fiber Mode
OM2 50/125?m
Wavelength
850/1300nm
1G Ethernet Distance
550m at 850nm
Insertion Loss
?0.3dB
Return Loss
?30dB
Min. Bend Radius
(Fiber Core)
15mm
Min. Bend Radius
(Fiber Cable)
20D/10D (Dynamic/Static)
Attenuation at 850nm
3.0 dB/km
Attenuation at 1300nm
1.0 dB/km
Cable Jacket
PVC
Cable Diameter
3.0mm
Polarity
A (Tx) to B (Rx)
Operating Temperature
-20~70?C
