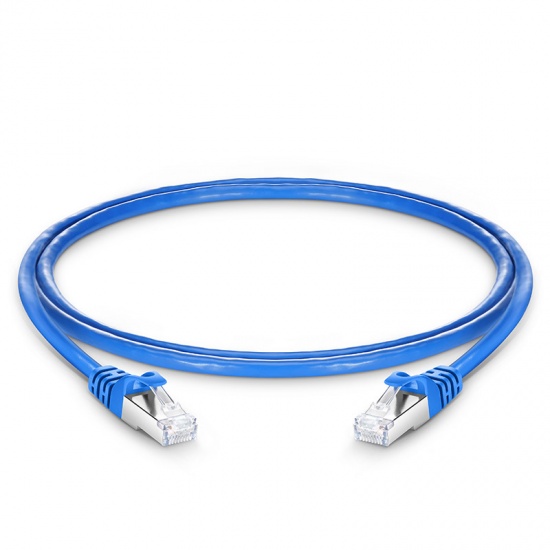

Cat6 Snagless Shielded (SFTP) Ethernet Network Patch Cable, 26AWG, 1000Base-T
Cat6 network patch cable is the cost-effective solution for indoor data center applications, supporting up to 1000BASE-T within 100m and 10 Gigabit Ethernet over the limited distance specified in the industry. And it is fully backward compatible with all the previous categories.
The Cat6 patch cables conductor apply Pure Bare Copper with high electrical conductivity and low signal transmission attenuation. The sheath material is new environmentally friendly material PVC CMX, which is durable, flame-retardant, resistant to bending.
Description
Cable Type
Cat6 Snagless
Shielding Type
Shielded (SFTP)
Cable Jacket
PVC CMX (Round)
Length
3ft (0.9m) (Including Plugs)
Conductor Material
Pure Bare Copper
Conductor Type
Stranded
Data Rate Support
1000Base-T and Maximum to 10GBase-T
Standard Bandwidth
250MHz
Gauge (AWG)
26 (7/0.16mm)
Cable Outer Diameter (mm)
6.2 ? 0.3
Max Transmission Distance
100m
Twisted Pairs
4 Pairs
Wire Scheme
T568B, Straight
Standard
ISO/IEC 11801, ANSI/TIA-568-C.2
Operating Temperature
-20 to +75?C (-4 to 167?F)
Installation Temperature
-10 to +50?C (14 to 122?F)
