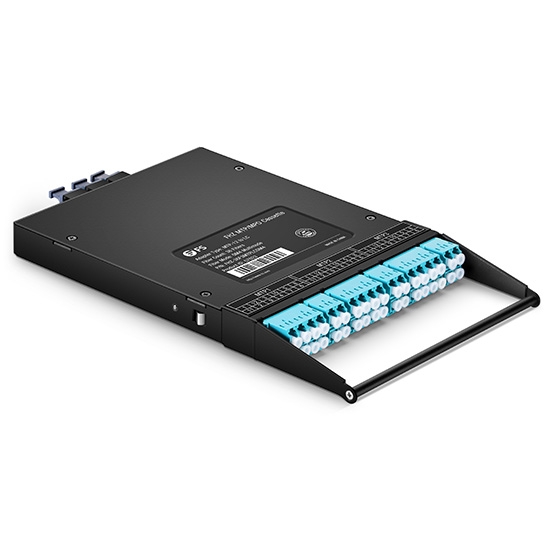

FHZ Premium Ultra High Density Elite MTP-12 Cassette
The premium ultra high density MTP cassette with its unique footprint up to 216 fibers inside a 1U space. The cassettes provide secure transition between MTP? and LC connectors. They are used to interconnect MTP trunk cables with LC patching.
FHZ Premium Ultra HD Series enables to provide the scalability to increase density as business demands evolve, 1U up to 216 LC fibers.
Description
Fiber Count
36 Fibers
Fiber Mode
OM4 50/125?m
Front Connector Type
LC UPC
Rear Connector Type
US Conec MTP? UPC Male (Pinned)
MTP Adapter Type
Key up to Key down
Glass Fiber
Corning ClearCurve?
Insertion Loss
MTP?0.35dB, LC?0.2dB
Return Loss
MTP?20dB, LC?30dB
Cassette Material
SPCC (Black Coating)
Dimensions (HxWxD)
0.84″x5.49″x8.92″ (21.4×139.4×226.7mm)
Operating Temperature
-10?C to 60?C
Application
Matching for FHZ Series Enclosures
