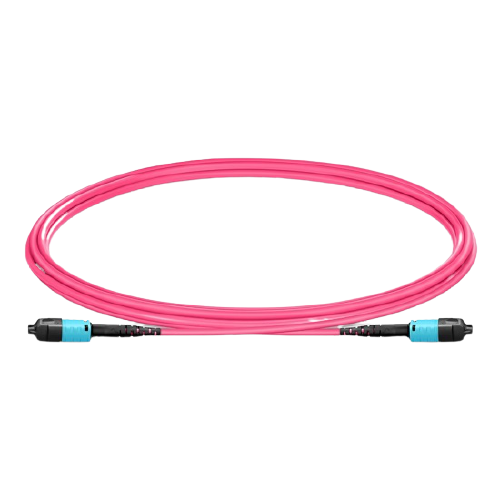

MTP? PRO Male to MTP? PRO Male OM4 Multimode Trunk Cable
The MTP PRO patch cord is bend-insensitive and pre-terminated with MTP PRO connectors, factory polished for low loss performance.
MTP PRO design is focused on simplicity and reliability, ensuring a quick and effective method for polarity and pin configuration without the need to remove the housing or handle loose pins. One simple insertion into a specially designed MTP PRO tool reverses the keying configuration by retracting the exposed key while simultaneously extracting a hidden key on the opposite side of the connector.
Description
Connector A
US Conec MTP? PRO Male (Pinned)
Connector B
US Conec MTP? PRO Male (Pinned)
Fiber Mode
OM4 50/125?m
Wavelength
850/1300nm
40/100G Ethernet Distance
150m at 850nm
10G Ethernet Distance
400m at 850nm
Glass Fiber
Corning ClearCurve?
RoHS Compliancy Status
Compliant
Polish Type
UPC to UPC
Minimum Bend Radius
7.5mm
Insertion Loss
0.35dB
Return Loss
?20dB
Attenuation at 850nm
?2.3dB/km
Attenuation at 1300nm
?0.6dB/km
Trunk Diameter
3.0mm
Cable Jacket
OFNP
Installation Tensile Load
100 N
Long-Term Tensile Load
50 N
Operating Temperature
-10?C to +70?C
Storage Temperature
-40?C to +85?C
