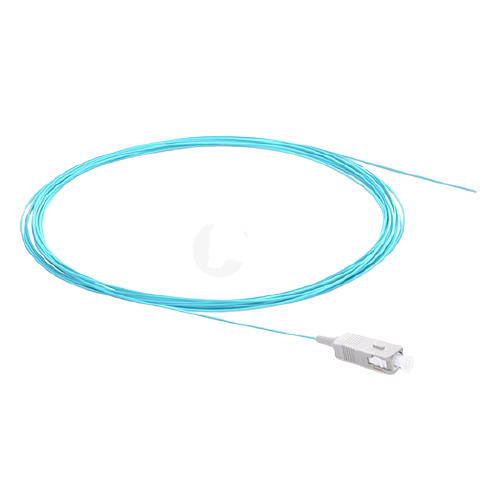

Simplex SC/UPC 50/125 Multimode Fiber Optic Pigtail,0.9 mm PVC Outer Jacket
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Description
Connector A
SC
Connector B
Unterminated
Fiber Mode
50/125 ?m
Fiber Count
Simplex
Fiber Grade
Bend Insensitive
Minimum Bend Radius
7.5 mm
Polish Type
UPC
Cable Diameter
0.9 mm
Cable Jacket
PVC
Jacket Color
Aqua
Wavelength
850 nm/1300 nm
Durability
500 Times
Insertion Loss
?0.3 dB
Interchangeability
?0.2 dB
Return Loss
?20 dB
Vibration
?0.2 dB
Operating Temperature
-40~75?C
Storage Temperature
-45~85?C
