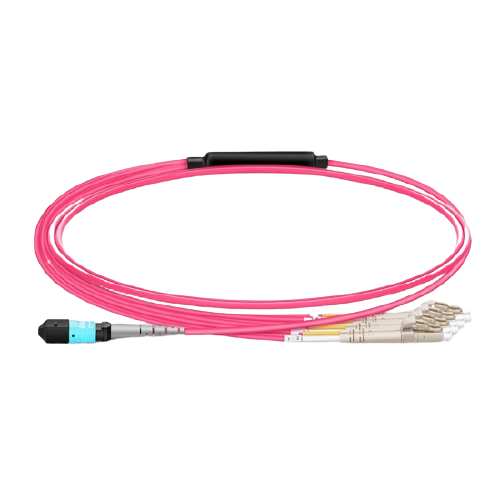

MTP Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP connectors and Corning Clearcurve fiber, it is optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G QSFP SR4 to 25G SFP-25G-SR-S optics direct connection and high-density data center applications.
Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
Description
Connector A
US Conec MTP Female (Pinless)
Connector B
LC UPC Duplex
Fiber Mode
OM4 50/125?m
Wavelength
850/1300nm
40/100G Ethernet Distance
150m at 850nm
10G Ethernet Distance
400m at 850nm
Glass Fiber
Corning ClearCurve?
RoHS Compliancy Status
Compliant
MTP Connector IL
0.35dB Max (0.15dB Typ.)
LC Connector IL
?0.2dB
MTP Connector RL
?20dB
LC Connector RL
?30dB
Attenuation at 850nm
?2.3 dB/km
Attenuation at 1300nm
?0.6 dB/km
Cable Jacket
Plenum (OFNP)
Fiber Count
8 Fibers
Jacket OD
3.0mm
Fan-Out Diameter
2.0mm
Breakout Length
0.5m (for total length more than 0.7m)
Breakout Length
0.3m (for total length between 0.5m and 0.7m)
Installation Tensile Load
66 N
Long-Term Tensile Load
50 N
Storage Temperature
-40?C to +85?C
Operating Temperature
-10?C to +70?C
