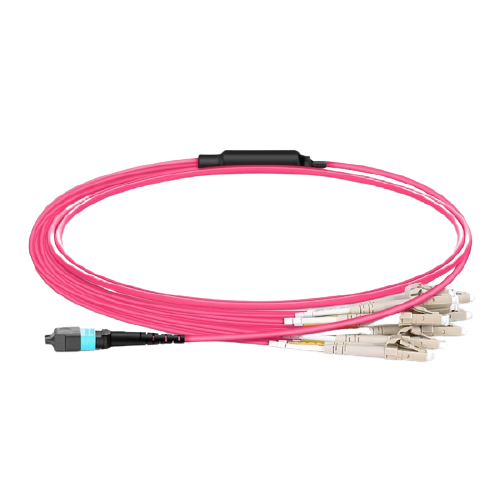

MTP? APC Female to LC UPC Duplex OM4 Multimode Breakout Cable
MTP? Breakout cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. With US Conec MTP? connectors and Corning Clearcurve fiber, it is optimized for 400G QSFP-DD SR8 to 50G SR optics direct connection and high-density data center applications.
Please note: The US Conec MTP? connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors.
Connector A
US Conec MTP? APC Female (Pinless)
Connector B
LC UPC Duplex
Fiber Mode
OM4 50/125?m
Wavelength
850/1300nm
400G Ethernet Distance
100m at 850nm
Glass Fiber
Corning ClearCurve
MTP? Connector IL
?0.35dB Max (0.15dB Typ.)
LC Connector IL
?0.2dB
MTP? Connector RL
?20dB
LC Connector RL
?30dB
Attenuation at 850nm
?2.3dB/km
Attenuation at 1300nm
?0.6dB/km
Cable Jacket
Plenum (OFNP)
Fiber Count
16 Fibers
Jacket OD
3.0mm
Fan-Out Diameter
2.0mm
Installation Tensile Load
66 N
Long-Term Tensile Load
50 N
Operating Temperature
-10?C to +70?C
Storage Temperature
-40?C to +85?C
