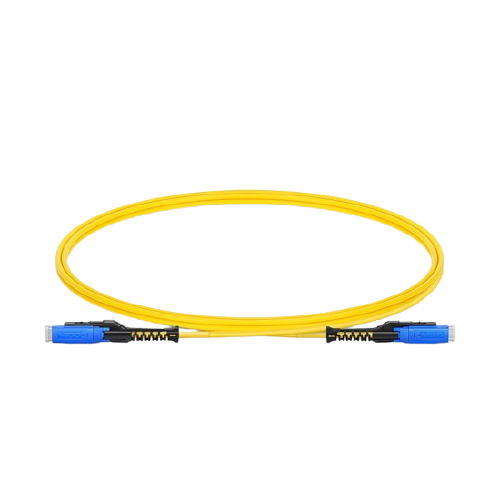

MDC UPC to LC UPC Duplex Uniboot OS2 PVC Fiber Optic Patch Cables
On MDC-LC tab and MDC-MDC tab, US conec MDC is a Very Small Form Factor (VSFF) duplex optical connector with proven 1.25mm ferrule technology while tripling times the fiber density over LC duplex connectors. The MDC duplex patch cables are mainly used in high-density applications and for cross-connection between patch panels or distribution boxes with products that contain optical fibers.
Please note: DirectConec? is a trademark of US Conec.
Description
Connector Type
MDC to MDC
Polish Type
UPC to UPC
Insertion Loss
?0.3dB
Return Loss
?50dB
Fiber Mode
OS2 9/125?m
Wavelength
1310/1550nm
Attenuation at 1310nm
?0.4dB/KM
Attenuation at 1550nm
?0.3dB/KM
Fiber Grade
Corning G.657.A1 Fiber
Cable Jacket
PVC
Fiber Count
Duplex
Cable Diameter
2.0mm
Min. Bend Radius
(Fiber Core)
10mm
Min. Bend Radius
(Fiber Cable)
10D /5D (Dynamic/Static)
Tensile Strength
(Long Term/Short Term)
60N/100N
Polarity
A (Tx) to B (Rx)
Operating Temperature
-10~60?C
Storage Temperature
-20~70?C
