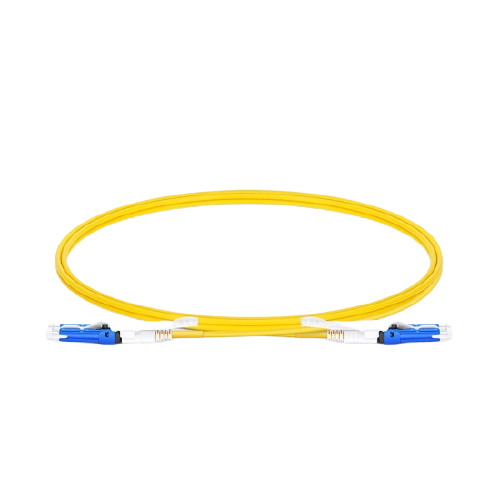

CS? UPC to CS? UPC Duplex 9/125?m Single Mode PVC Fiber Optic Patch Cable
Senko CS? connector is designed for next generation 200/400G transceiver QSFP-DD and OSFP, meeting the requirement for CWDM4, FR4, LR4 and SR2.
The reduced size CS? connector is not only capable of delivering low insertion and high return loss comparable to existing LC connectors, but it does so with a reduced footprint. Working with the QSFP-DD and OSFP pluggable form factors, the CS? connector accentuates ease of fiber breakout.
Description
Connector Type
Senko CS? to CS?
Polish Type
UPC to UPC
Fiber Mode
OS2 9/125?m
Wavelength
1310/1550nm
400G Ethernet Distance
2km with OSFP-400G-2FR4
Glass Fiber
Corning Fiber
Insertion Loss
?0.2dB
Return Loss
?50dB
Fiber Grade
G.657.A1 (Compatible with G.652.D)
Minimum Bend Radius
10mm
Attenuation at 1310 nm
0.4 dB/km
Attenuation at 1550 nm
0.22 dB/km
Fiber Count
Duplex
Cable Diameter
2.0mm
Cable Jacket
PVC
Polarity
A (Tx) to B (Rx)
Operating Temperature
-20 to 70?C
Storage Temperature
-40 to 80?C
