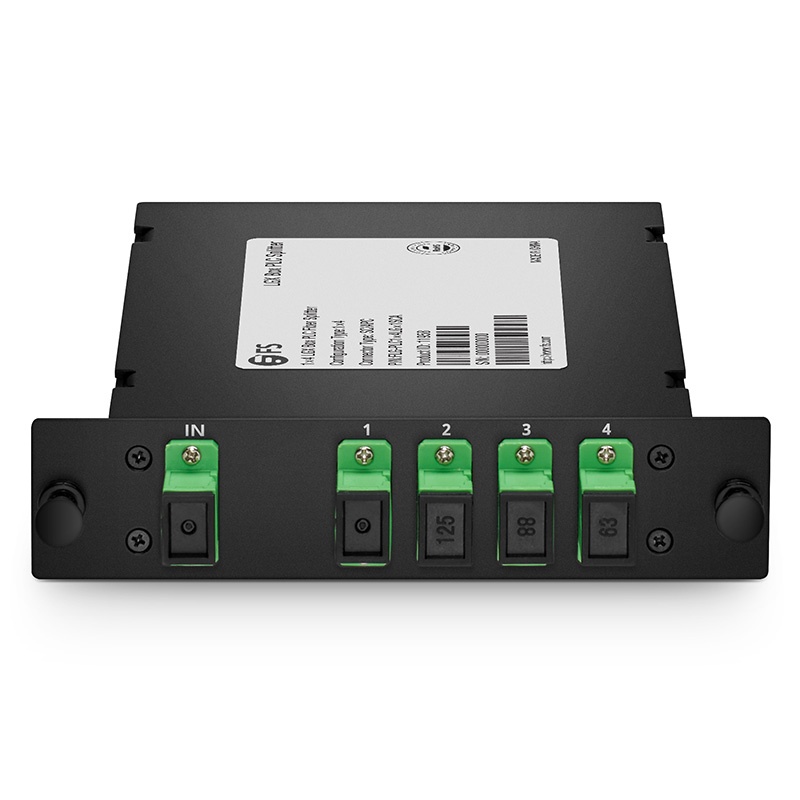

1?4 Fiber PLC Splitter with Standard LGX Metal Box, SC/APC
Planar Lightwave Circuit (PLC) Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
Description
Package Style
LGX Box
Configuration Type
1×4
Fiber Grade
G.657A1
Fiber Mode
Singlemode
Connector Type
SC/APC
Split Ratio
50/50
Insertion Loss
?7.3dB
Return Loss
?55dB
Loss Uniformity
?0.6dB
Directivity
?55dB
Polarization Dependent Loss
?0.2dB
Temperature Dependent Loss
?0.5dB
Wavelength Dependent Loss
?0.3dB
Operating Bandwidth
1260~1650nm
Dimensions (HxWxD)
1.14″x6.18″x5.08″ (29x157x129mm)
Temperature
Operating -40 to 85?C (-40 to 185?F)
Storage -40 to 85?C (-40 to 185?F)
