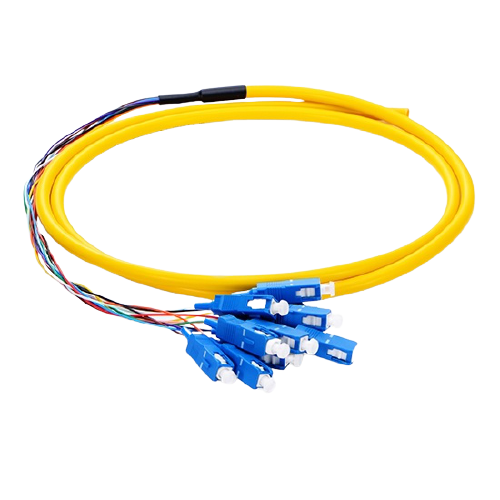

12 Fibers SC/UPC Single-Mode Bunch Fiber Optic Pigtail, PVC Outer Jacket
Description
Connector A
SC
Connector B
Unterminated
Fiber Mode
9/125 ?m
Fiber Count
12
Fiber Grade
G.657.A1
Minimum Bend Radius (mm)
20D (Dynamic)/10D (Static)
Polish Type
UPC
Cable Diameter
0.9 mm
Cable Jacket
PVC
Jacket Color
Yellow
Wavelength
1310 nm/1550 nm
Durability
500 Times
Insertion Loss
?0.3 dB
Interchangeability
?0.2 dB
Return Loss
?50 dB
Vibration
?0.2 dB
Operating Temperature
-40~75?C
Storage Temperature
-45~85?C
