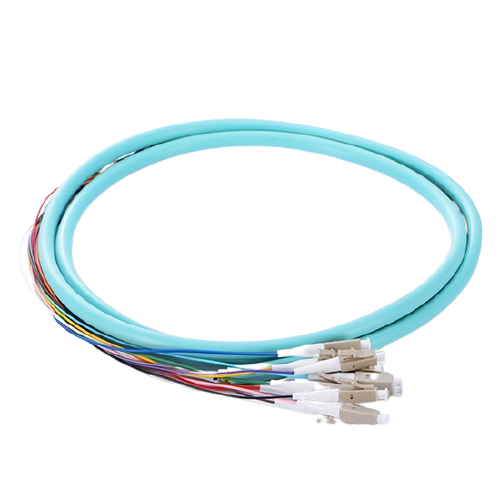

12 Fibers LC/UPC OM4 Multimode Bunch Fiber Optic Pigtail, PVC Outer Jacket
Description
Connector A
LC
Connector B
Unterminated
Fiber Mode
50/125 ?m
Fiber Count
12
Fiber Grade
Bend Insensitive
Minimum Bend Radius (mm)
20D (Dynamic)/10D (Static)
Polish Type
UPC
Cable Diameter
0.9 mm
Cable Jacket
PVC
Jacket Color
Aqua
Wavelength
850 nm/1300 nm
Durability
500 Times
Insertion Loss
?0.3 dB
Interchangeability
?0.2 dB
Return Loss
?20 dB
Vibration
?0.2 dB
Operating Temperature
-40~75?C
Storage Temperature
-45~85?C
